How do I log into my Cloakbox VPN Router?

  1. First, make sure this computer is connected to your CloakBox via WiFi (wireless) or Ethernet (cable).
  2. To log in to your CloakBox please click here: 192.168.20.1
    Note: The above is the default address we ship the CloakBox VPN routers with. If you have reset your router at any point, you may need to use one of these alternate links: 192.168.11.1 – or – 192.168.50.1 – or – 192.168.1.1
    If the link does not work, please copy the link or just type it directly into the address bar in your browser.
  3. You will be prompted for a username and password. Enter the details provided with your CloakBox. Default settings are as follows:
    • Username = admin (must be all lowercase)
    • Password = your account number – see below for further details

    The password was included in the box with your the router. Please check under the lid.

    You can also view your account number by logging in to your portal account, CLICK HERE TO LOG IN
    Your account number will be shown at the top-middle of the page (Acccount#: w00xxxx), next to your referral code.

How do I change the VPN location with my Tomato Cloakbox VPN Router?

1. Log in to your CloakBox
2. Click on VPN Tunneling > OpenVPN Client > Client 1 > Basic
3. Click > STOP NOW at the bottom
4. In the box labeled “Server Address/Port”, enter the address of the server location you want to connect to.

OpenVPN Server Address Locations

USA OpenVPN SSL VPN Gateways

vpn.ashburn.witopia.net
vpn.atlanta.witopia.net
vpn.austin.witopia.net
vpn.baltimore.witopia.net
vpn.boston.witopia.net
vpn.charlotte.witopia.net
vpn.chicago.witopia.net
vpn.dallas.witopia.net
vpn.kansascity.witopia.net
vpn.lasvegas.witopia.net
vpn.longbeach.witopia.net
vpn.losangeles.witopia.net
vpn.miami.witopia.net
vpn.newyork.witopia.net
vpn.newark.witopia.net
vpn.portland.witopia.net
vpn.phoenix.witopia.net
vpn.redding.witopia.net
vpn.sanfrancisco.witopia.net
vpn.seattle.witopia.net
vpn.washingtondc.witopia.net

Canada OpenVPN SSL VPN Gateways

vpn.montreal.witopia.net
vpn.toronto.witopia.net
vpn.vancouver.witopia.net

Central/South America OpenVPN SSL VPN Gateways

vpn.mexicocity.witopia.net
vpn.saopaulo.witopia.net

Europe OpenVPN SSL VPN Gateways

vpn.amsterdam.witopia.net
vpn.Barcelona.witopia.net
vpn.berlin.witopia.net
vpn.brussels.witopia.net
vpn.bucharest.witopia.net
vpn.copenhagen.witopia.net
vpn.dublin.witopia.net
vpn.frankfurt.witopia.net
vpn.helsinki.witopia.net
vpn.istanbul.witopia.net
vpn.kiev.witopia.net
vpn.kristiansand.witopia.net
vpn.lisbon.witopia.net
vpn.london.witopia.net
vpn.luxembourg.witopia.net
vpn.madrid.witopia.net
vpn.manchester.witopia.net
vpn.milan.witopia.net
vpn.moscow.witopia.net
vpn.paris.witopia.net
vpn.prague.witopia.net
vpn.riga.witopia.net
vpn.rome.witopia.net
vpn.reykjavik.witopia.net
vpn.stockholm.witopia.net
vpn.vienna.witopia.net
vpn.vilnius.witopia.net
vpn.warsaw.witopia.net
vpn.zurich.witopia.net

Africa/Middle East OpenVPN SSL VPN Gateways

vpn.cairo.witopia.net
vpn.jerusalem.witopia.net

Asia OpenVPN SSL VPN Gateways

vpn.bangkok.witopia.net
vpn.hanoi.witopia.net
vpn.hongkong.witopia.net
vpn.kualalumpur.witopia.net
vpn.newdelhi.witopia.net
vpn.singapore.witopia.net
vpn.seoul.witopia.net
vpn.tokyo.witopia.net

Oceania OpenVPN SSL VPN Gateways

vpn.melbourne.witopia.net
vpn.auckland.witopia.net
vpn.sydney.witopia.net



5. Click SAVE at the bottom of the page
6. Click > Start now

How do I update my cert/keys after renewing my Tomato Cloakbox VPN Router?

1. Log in to your CloakBox
2. Click on VPN Tunneling > OpenVPN Client > Client 1 > Keys
3. Click > STOP NOW at the bottom
4. Click HERE to log in to your WiTopia Account
5. Click on My Services
6. Click on Click for details under Cloakbox
7. Click on View Credentials
8. Copy and Paste all three cert and keys EXACTLY as they are shown in your account

WiTopia Account Field = CloakBox Keys Field
Server/CA Certificate = Certificate Authority
Your Certificate = Client Certificate
Your Private Key = Client Key

Tomato Cert Update
9. Click SAVE at the bottom of the page
10. Click > Start now

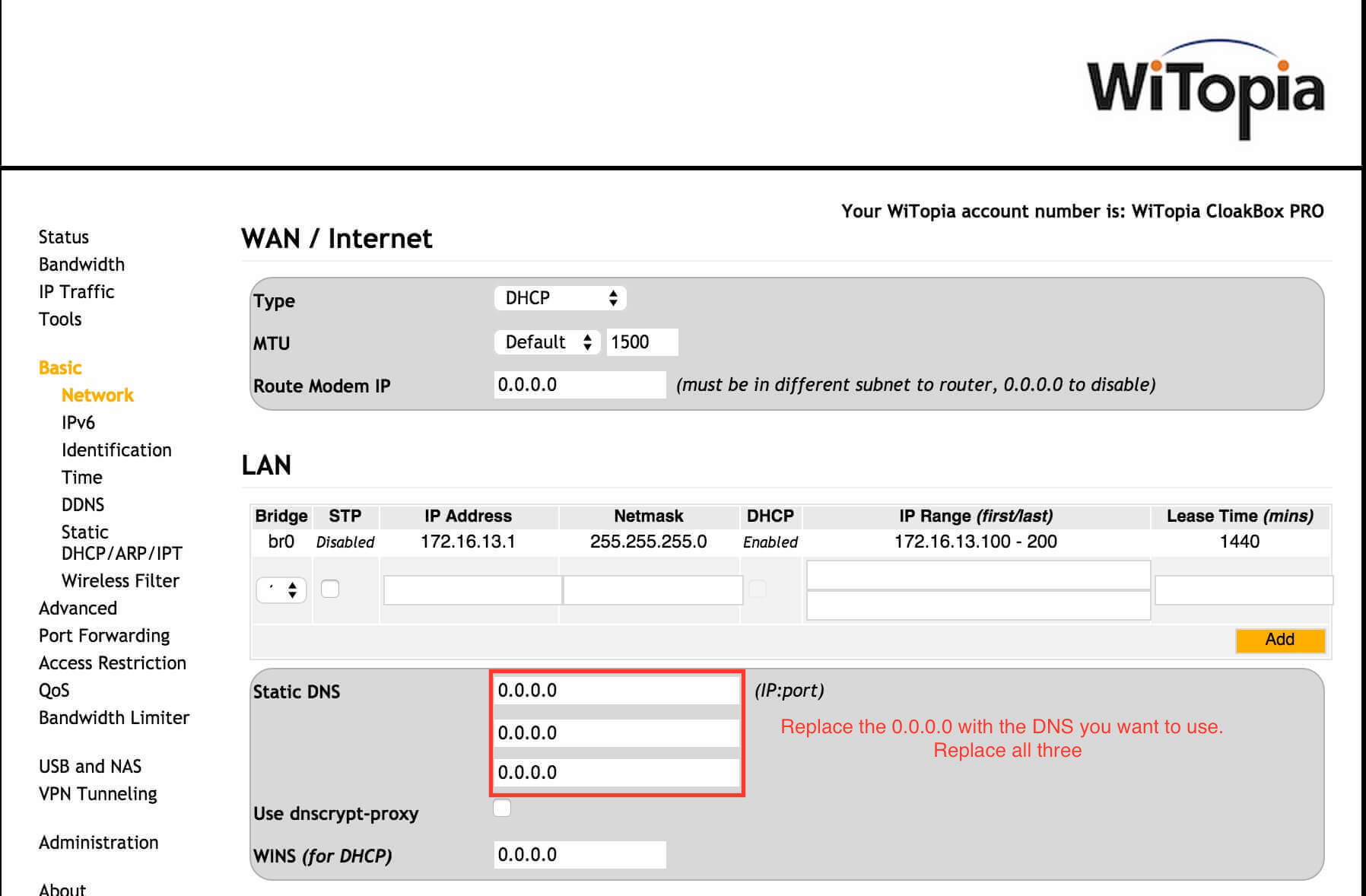

How do I change the DNS in my Tomato Cloakbox VPN Router?

1. Log in to your CloakBox
2. Click on Basic > Network
3. Under LAN > Static DNS enter the dns you want to use.

click HERE for a list of possible dns providers you can use.


4. Scroll to the bottom and click Save
5. Reboot the router by clicking on Reboot on the bottom of the main menu

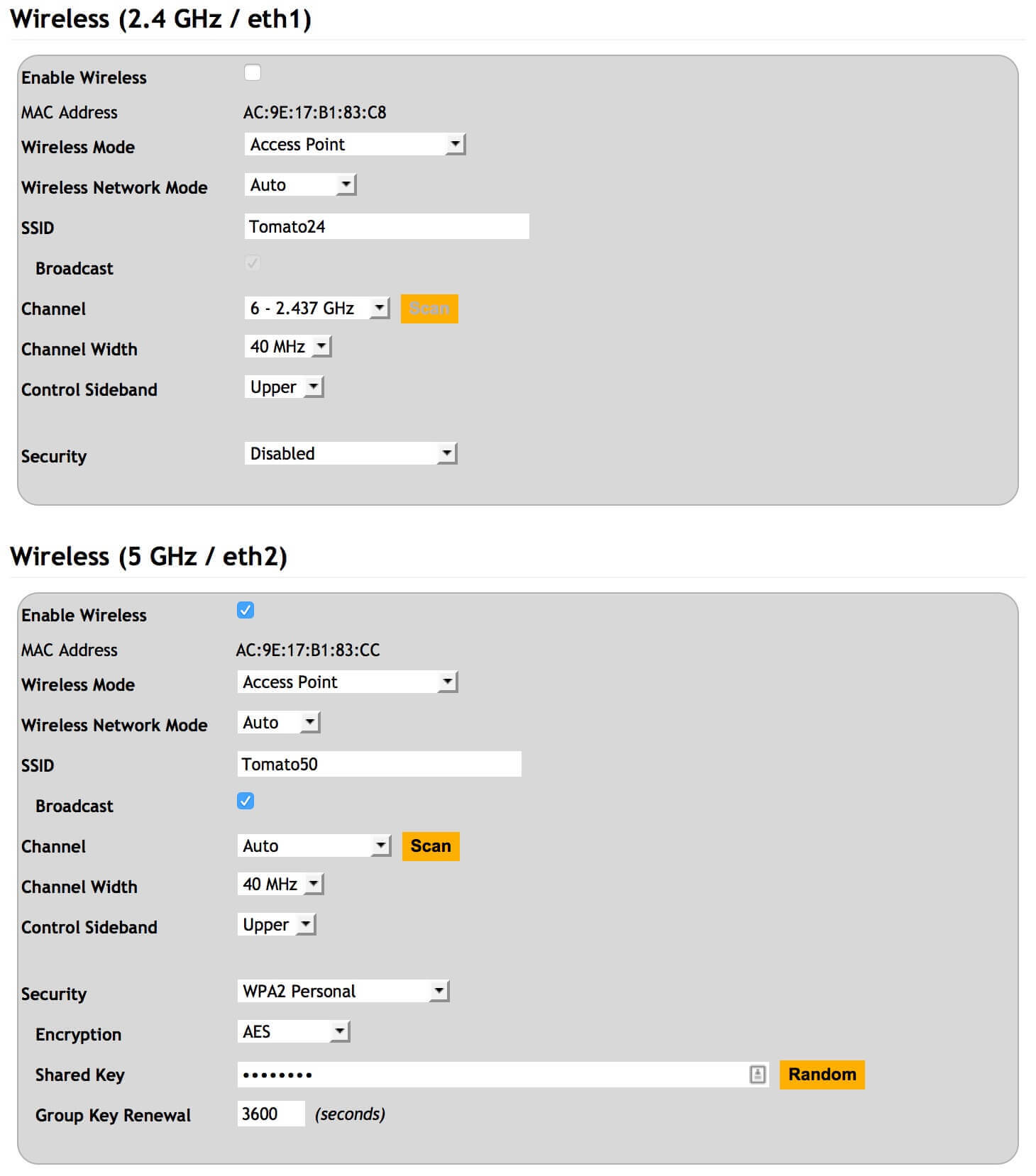

How do I change the wireless SSID & Password in my Tomato Cloakbox VPN Router?

1. Log in to your CloakBox
2. Click on Basic > Network
3. Scroll down to the bottom to the 2.4 and 5ghz sections

There are two possible wireless signals, one for 2.4ghz and one for 5ghz. 2.4ghz may work better if you have thick walls, or other interference. 5ghz may offer faster speeds, but less distance. You will want to test each one to find what is works best for you.

Tomato Wireless Settings

Change SSID (wireless name)

  • In the field marked SSID, change the name to the wireless name you want.
  • Click save at the bottom of the page

Change Shared Key (wireless password)

  • Click the dropdown under Security and choose “WPA2 Personal”
  • Under “Shared Key” enter the wireless password you want to use
  • Click save at the bottom of the page

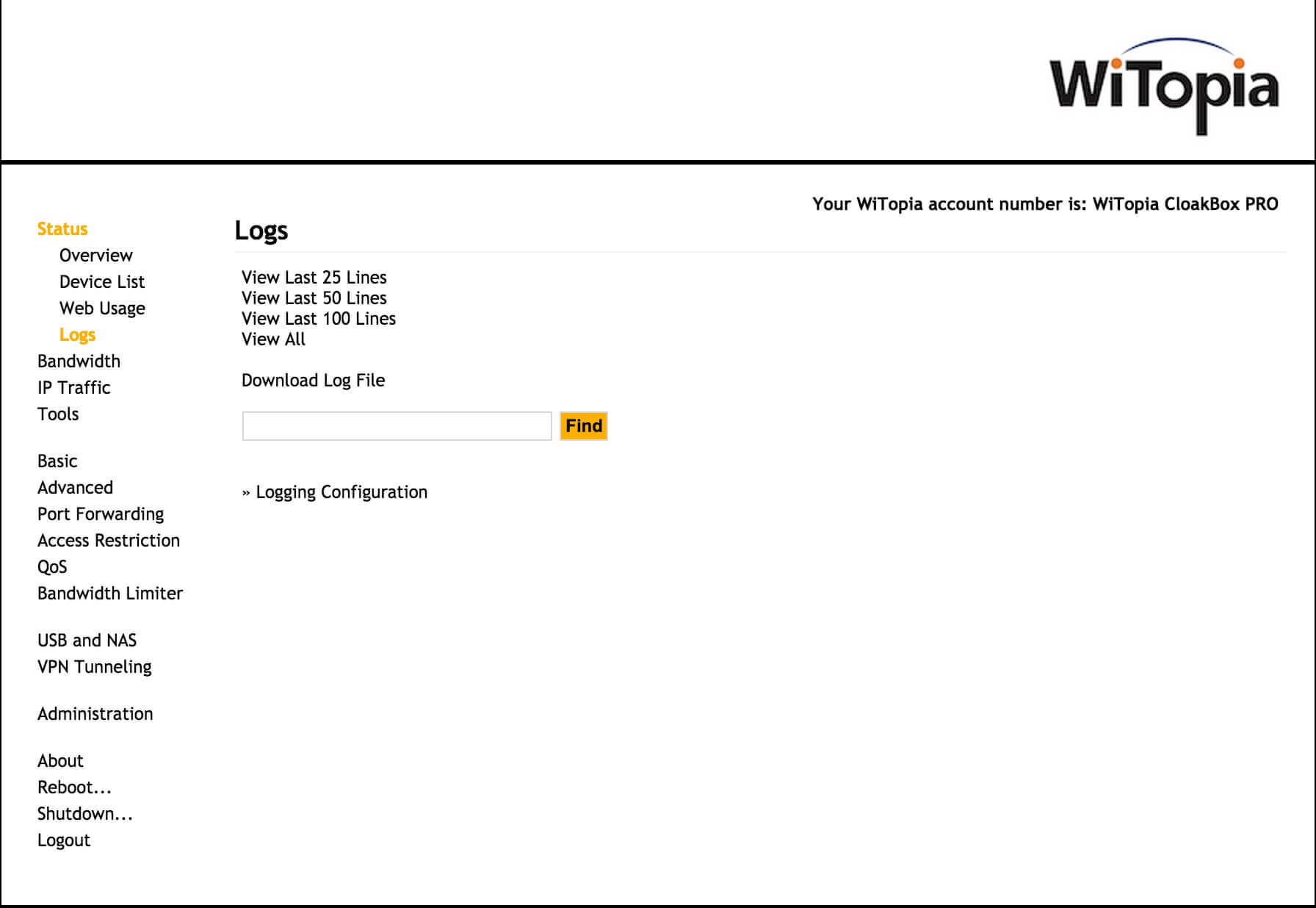

How do I get the VPN logs from my Tomato Cloakbox VPN Router?

1. Log in to your CloakBox
2. Click on Status > Logs > Download log file
3. Locate the log file on your computer (most browsers will put the file in the “downloads” folder on your computer)
4. Email the “syslog.txt” file to us at support@witopia.net
CloaKbox Tomato Logs
