IPsec Certficate Installation

  1. From your computer download our IPSec certificate.
    DOWNLOAD CERT
  2. Choose SAVE when prompted
  3. Go to Downloads folder
  4. Right click on the cert from your downloads folder and choose Install Certificate

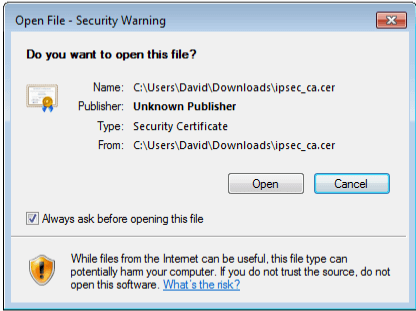

  5. Choose open when prompted
  6. Go through the cert import wizard:

    • Click next

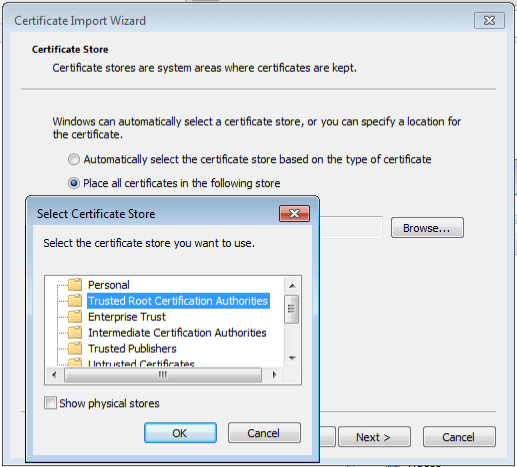

    • Click on “place all certificates in the following store”
    • Click browse and choose Trusted Root Certification Authorities
    • Click OK
    • Click Next
    • Click Finish
    • Click OK on Import Success notice
    • If you get a warning message about the certificate click on OK. the cert is valid, and safe but windows 7 may give this warning one time

Setup IKEv2 VPN

  1. Start -> Control Panel -> Network and Internet -> Networking and Sharing
  2. Setup a new network connection or network

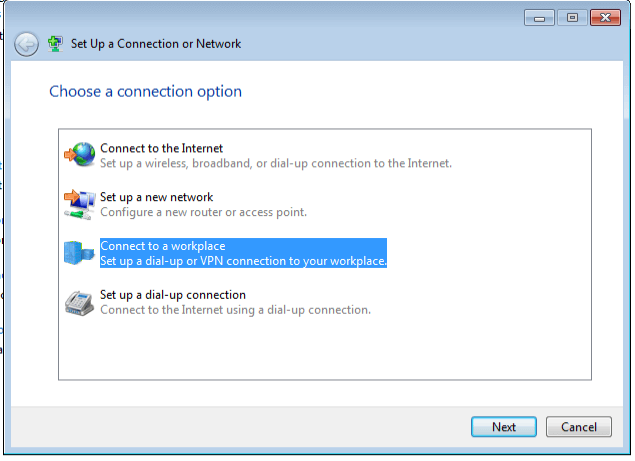

  3. connect to a workplace
  4. Use my Internet Connection VPN

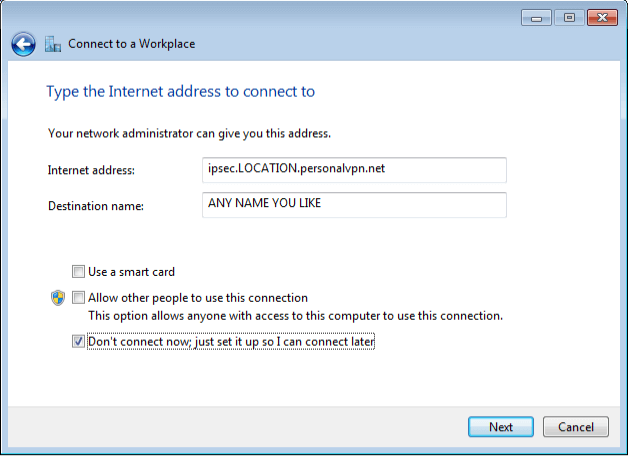

    • Internet Address: Choose any location you like
    • IPSec Server Location Addresses

      USA IPSec VPN Gateways

      ipsec.ashburn.witopia.net
      ipsec.atlanta.witopia.net
      ipsec.baltimore.witopia.net
      ipsec.boston.witopia.net
      ipsec.chicago.witopia.net
      ipsec.dallas.witopia.net
      ipsec.denver.witopia.net
      ipsec.kansascity.witopia.net
      ipsec.losangeles.witopia.net
      ipsec.lasvegas.witopia.net
      ipsec.miami.witopia.net
      ipsec.newark.witopia.net
      ipsec.newyork.witopia.net
      ipsec.phoenix.witopia.net
      ipsec.portland.witopia.neta
      ipsec.redding.witopia.net
      ipsec.sanfrancisco.witopia.net
      ipsec.seattle.witopia.net
      ipsec.washingtondc.witopia.net

      Canada IPSec VPN Gateways

      ipsec.montreal.witopia.net
      ipsec.toronto.witopia.net
      ipsec.vancouver.witopia.net

      Central/South America IPSec VPN Gateways

      ipsec.mexicocity.witopia.net
      ipsec.saopaulo.witopia.net

      Europe IPSec VPN Gateways

      ipsec.amsterdam.witopia.net
      ipsec.barcelona.witopia.net
      ipsec.berlin.witopia.net
      ipsec.brussels.witopia.net
      ipsec.bucharest.witopia.net
      ipsec.budapest.witopia.net
      ipsec.copenhagen.witopia.net
      ipsec.dublin.witopia.net
      ipsec.frankfurt.witopia.net
      ipsec.helsinki.witopia.net
      ipsec.istanbul.witopia.net
      ipsec.kiev.witopia.net
      ipsec.lisbon.witopia.net
      ipsec.london.witopia.net
      ipsec.luxembourg.witopia.net
      ipsec.madrid.witopia.net
      ipsec.manchester.witopia.net
      ipsec.milan.witopia.net
      ipsec.moscow.witopia.net
      ipsec.mumbai.witopia.net
      ipsec.oslo.witopia.net
      ipsec.paris.witopia.net
      ipsec.prague.witopia.net
      ipsec.riga.witopia.net
      ipsec.reykjavik.witopia.net
      ipsec.stockholm.witopia.net
      ipsec.vilnius.witopia.net
      ipsec.warsaw.witopia.net
      ipsec.zurich.witopia.net

      Africa/Middle East IPSec VPN Gateways

      ipsec.jerusalem.witopia.net
      ipsec.johannesburg.witopia.net

      Asia IPSec VPN Gateways

      ipsec.bangkok.witopia.net
      ipsec.hanoi.witopia.net
      ipsec.hongkong.witopia.net
      ipsec.kualalumpur.witopia.net
      ipsec.newdelhi.witopia.net
      ipsec.singapore.witopia.net
      ipsec.seoul.witopia.net
      ipsec.tokyo.witopia.net

      Oceania IPSec VPN Gateways

      ipsec.auckland.witopia.net
      ipsec.melbourne.witopia.net
      ipsec.sydney.witopia.net

    • Destination Name: ANYTHING YOU WANT
    • click don’t connect now
    • Click Next

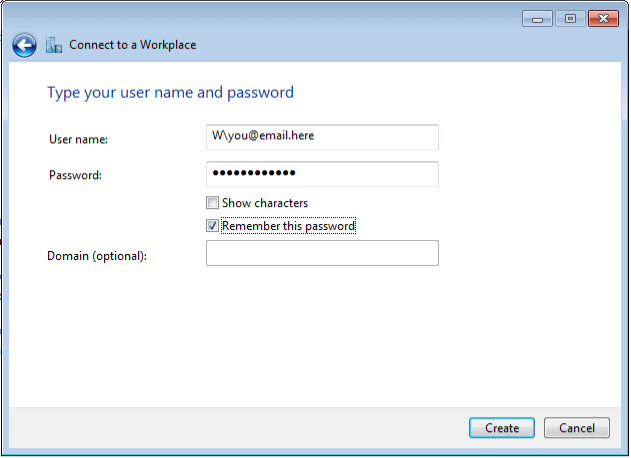

    • Username: [YOUR VPN USERNAME]
    • There are two potential formats for your vpn username. You must use the one you selected when you activated your services. If you do not recall this, you can login to your account on our website here and under your active serice it says "USERNAME:" and then provides your username. Note the vpn login and website login may not be the same.

      #1: Your email = W\your@email.com #2: WiTopia username = username@witopia

      You MUST use a Capital W with a backslash "\" if your vpn username is an email.
      If you have a WiTopia vpn username there is no W\ before or .net after the username
    • Password: [YOUR VPN PASSWORD]
  5. Click on close
  6. Control Panel -> Network and Internet -> Network Connections
  7. Right click on newly created IKEv2 connection name -> Properties

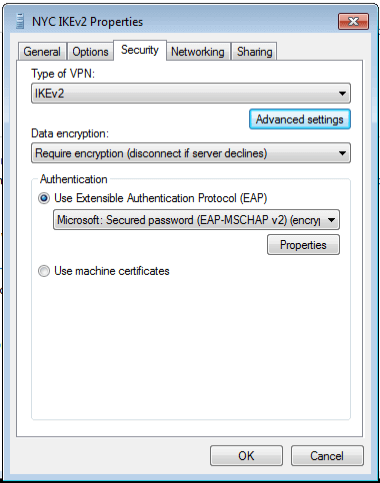

  8. Click security
  9. Change type to IKEv2

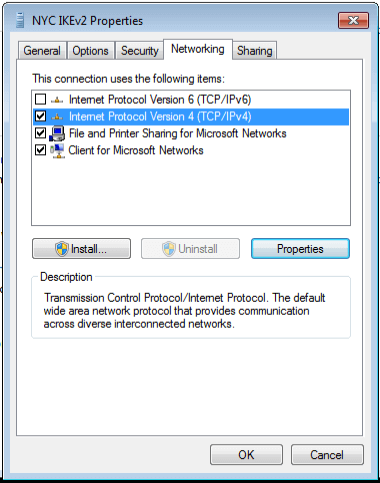

  10. Click on networking
  11. Uncheck the TCP IPv6
  12. Click on ok
  13. The VPN is setup and ready to be connected

Connecting the VPN

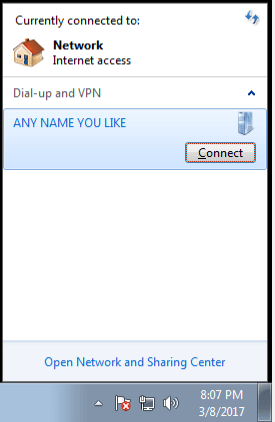

  1. To connect click on the network icon in the bottom right taskbar
  2. click on the name of the vpn connection you want to use
  3. click connect

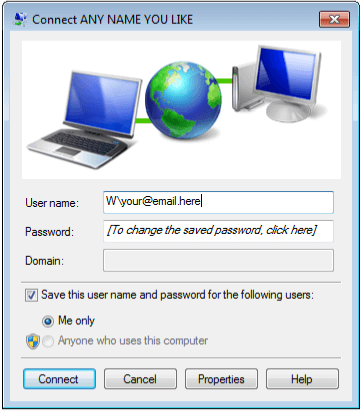

  4. if a box comes up with your username and password click on connect
    The vpn should be connected
